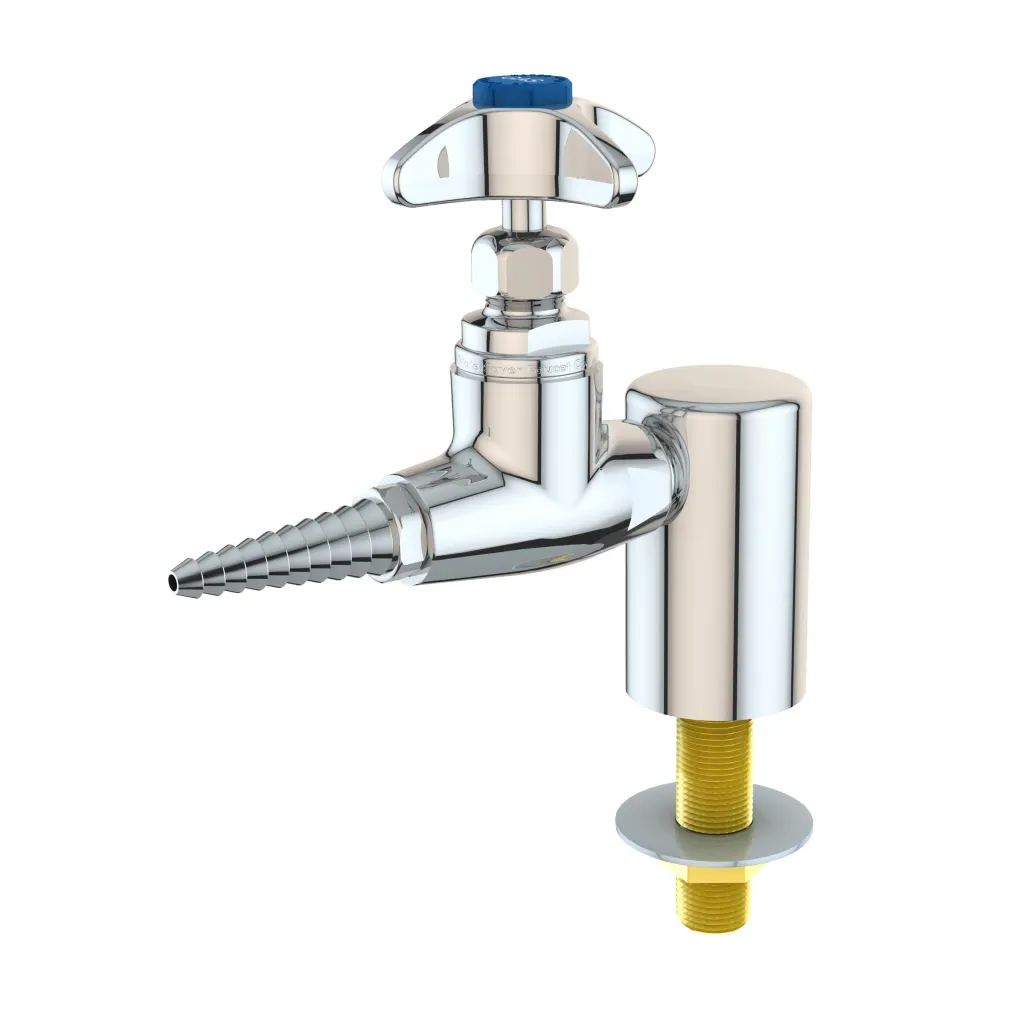

Watersaver L2880-131WSA Needle Valve

Watersaver L2880-131WSA Needle Valve

$120.65

Vendor

Mounting

Deck mounted turret base with single outlet.

Valve Body

Straight pattern forged brass.

Valve Unit

Floating stainless steel needle and replaceable stainless steel seat.

Handle

Forged brass four-arm handle with color-coded index disc.

Inlet

Furnished with 3/8" IPS mounting shank (assembled), locknut and washer. 3/8" NPT male inlet.

Outlet

3/8" NPT female outlet with removable ten serration hose end.

Quality Assurance

Fixture is fully assembled and factory tested prior to shipment.

Additional Models

L2880-132AWSA: Same as above except with two valves at 90 degrees.
L2880-132SWSA: Same as above except with two valves at 180 degrees.
L2880-134WSA: Same as above except with four valves.

SKU: WSF L2880-131WSA

Flow regulation of all laboratory gases, including special gases such as nitrogen, oxygen, helium and hydrogen. When ordered, valve may be specially cleaned, lubricated and packaged for pure gas service. Valve is certified for natural gas service by CSA International.

The Watersaver L2880-131WSA needle valve is engineered for precise control of laboratory gases at pressures up to 100 PSI. Featuring a forged brass body, this valve ensures durability and long-lasting performance. The quarter-turn open/close valve unit includes a chrome-plated brass ball and molded PTFE seals, providing smooth operation.

Designed with a deck-mounted turret base and a single outlet, the L2880-131WSA is easy to install and use. The forged brass lever handle with a color-coded index disc allows for easy identification and precise control. The valve’s inlet is equipped with a 3/8″ IPS mounting shank, locknut, and washer, and the outlet features a removable ten serration hose end.

Ideal for ADA-compliant applications, the Watersaver L2880-131WSA is certified for natural gas service by CSA International. Each valve is fully assembled and factory tested, ensuring reliable performance and quality in laboratory environments.
