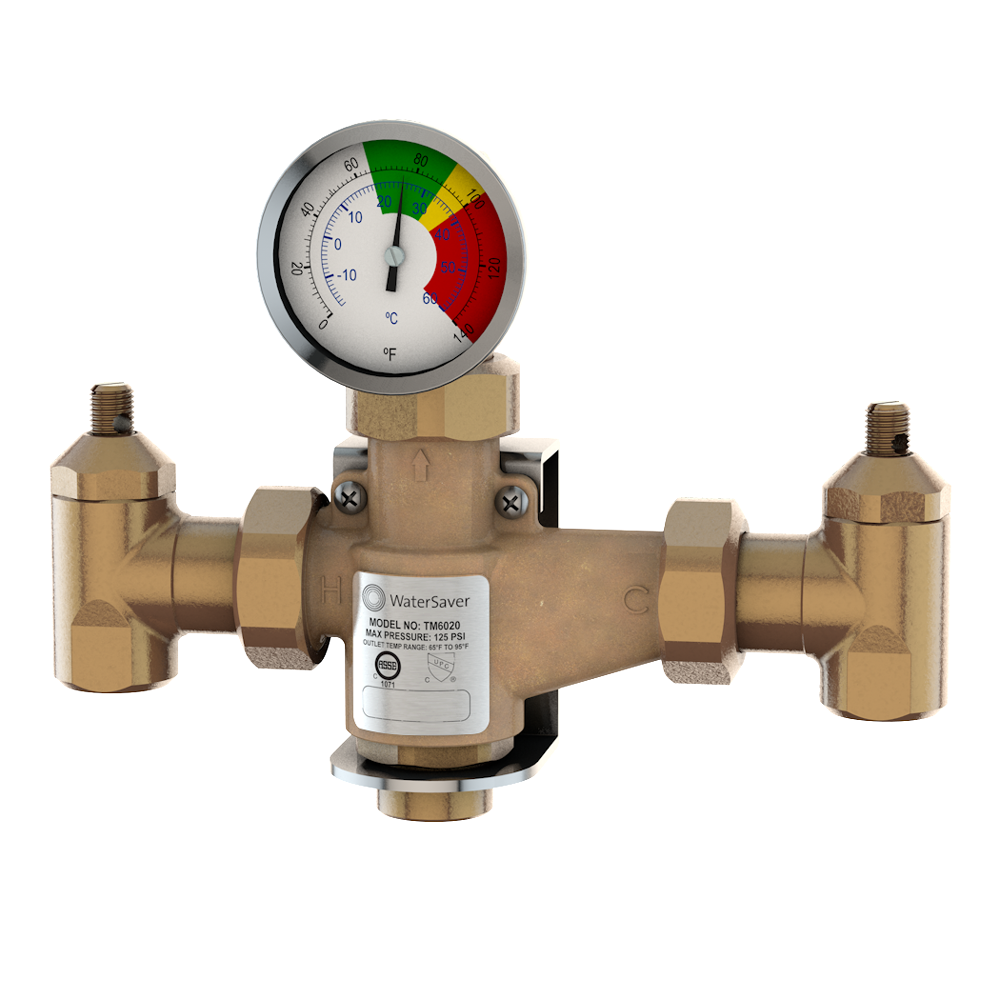

Watersaver TM6020 Thermostatic Blending Valve – Small Capacity
Watersaver TM6020 Thermostatic Blending Valve – Small Capacity
$716.23
Vendor | |
---|---|
Application | Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units. |
Mounting | Valve inlets can be positioned on top, back or bottom of valve. Outlet can be on top or bottom. Valve can be configured in the field for any mounting position. Furnished with heavy duty stainless steel mounting bracket. |
Temperature Control | Valve has precision thermal actuator that senses incoming water temperature and automatically blends water to preset temperature. Valve is factory set to deliver 85°F (29°C) water. Temperature of tepid water can be adjusted as required and then locked. Furnished with dial temperature gauge as standard to monitor temperature of tepid water. |
Cold Water Bypass | If the supply of hot water is restricted or interrupted, an internal bypass allows the valve to deliver cold water only. In bypass mode, the valve delivers 9 GPM (34 L/min) at 30 PSI (2.1 bar) pressure drop. |
Hot Water Shutoff | Valve has internal PTFE valve seat. If the supply of cold water is interrupted, the valve will close completely and not deliver any water at all, eliminating any possibility of scalding. |
Flow Capacity | Refer to table below for flow capacity of valve at specified pressure drops. |
Checkstops/Filters | Each inlet has a lockable shutoff valve for maintenance, internal check valve to prevent backflow and stainless steel basket filter to remove debris from the water flow. |
Construction | Valve meets the requirements of the U.S. Safe Drinking Water Act as lead-free. |
Inlet/Outlet | 1/2” NPT female inlets and outlet as standard. |
Quality Assurance | Valve is ASSE certified under ANSI/ASSE 1071. Valve is fully assembled and factory tested prior to shipment. |
The LabBuild Thermostatic Mixing Valve is engineered for precise temperature control in laboratory settings, ensuring safety and efficiency by mixing hot and cold water to a predetermined temperature. This valve is designed for reliability and durability, meeting the specific needs of laboratory environments where consistent and accurate water temperature is crucial.
The Watersaver TM6020 Thermostatic Blending Valve is a high-performance device designed to deliver precise temperature control in laboratory and industrial applications. This valve ensures a consistent water temperature, providing safety and comfort by preventing scalding and thermal shock. Constructed from durable materials, the TM6020 offers long-lasting reliability and efficiency.
Equipped with advanced thermostatic technology, the TM6020 automatically adjusts to fluctuations in water pressure and temperature, maintaining a stable output. The valve includes easy-to-use temperature controls and a built-in fail-safe mechanism that shuts off the flow if the cold water supply fails, enhancing user safety.
Ideal for laboratories, healthcare facilities, and industrial settings, the Watersaver TM6020 Thermostatic Blending Valve meets stringent industry standards and is fully assembled and factory tested. This valve is an essential component for any system requiring precise and reliable temperature control, ensuring optimal performance and safety.
